EOS/EOL Report in NCM

The end of sale (EOS)/end of life (EOL) report in Site24x7 Network Configuration Manager (NCM) provides visibility into device lifecycle statuses, helping IT teams proactively plan device replacements and avoid compliance risks.

Use cases

The EOS/EOL Report provides insight into the lifecycle status of your network devices. This is vital for proactive network planning, compliance, and risk reduction. Here are some example use cases:

1. Lifecycle planning and asset refresh: Identify devices nearing their end-of-support dates and prioritize hardware refreshes to prevent unplanned downtime.

2. Compliance and audit readiness: Use the report to justify upgrades and stay compliant with industry standards.

3. Risk management: Reduce security and operational risks by identifying unsupported devices that may not receive critical patches. Flag obsolete firmware and plan for migration.

4. Budget forecasting: Plan CapEx spending with visibility into upcoming EOS/EOL impacts.

Generating the report

  1. Log in to your Site24x7 account.

  2. Navigate to Reports > NCM Device > EOS/EOL Report in the All Monitors section.

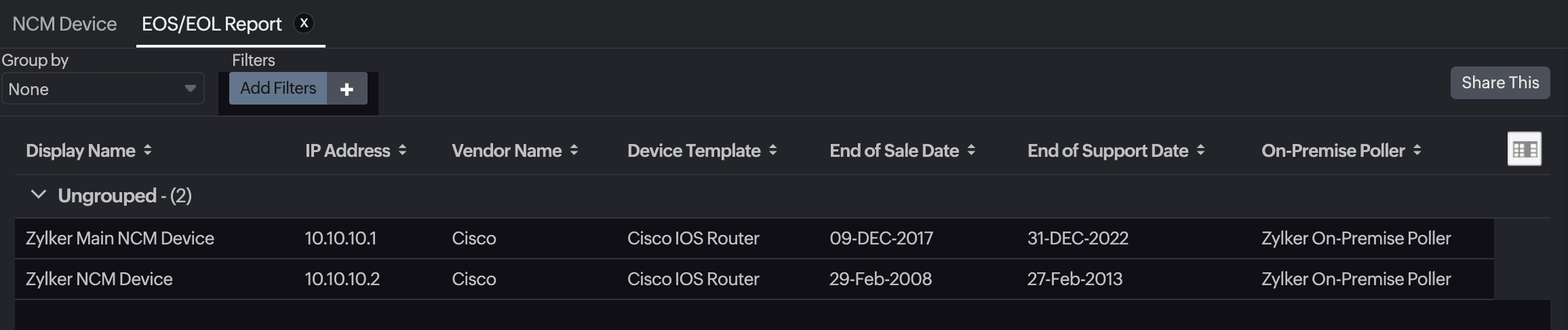

  3. The report displays a list of network devices with their respective lifecycle data.

  4. Using the Group by dropdown, you can group devices based on parameters such as vendor, On-Premise Poller, device template, and more.

  5. Use the Filters option to narrow down the report as needed.

  6. Use the Share This button in the top-right corner to export as CSV or PDF, email, or schedule the report.

  7. Hover over a device name and click the open in a new tab icon to view the monitor summary.

  8. Click the column icon  to customize additional columns in the EOS/EOL Report.

Report columns

Column Description
Display Name The user-defined name for the network device.
IP Address The device’s IP address on the network.
Vendor Name Manufacturer of the device (e.g., Cisco).
Device Template Template used to classify the device type (e.g., Cisco IOS Router).
End of Sale Date The date when the device was discontinued from sale by the vendor.
End of Support Date The final date the vendor provides support, including security updates.
On-Premise Poller The On-Premise Poller responsible for discovering and monitoring the device.
Backup Status Indicates whether the device configuration backup was successful or not.
Credential Name The name of the credentials used to access the device.
OS Version The operating system version running on the device.
Series Number The series or family identifier of the device.
System Description A brief description of the device.
Model Number The specific hardware model identifier.
Protocol The communication protocol used for configuration backup or monitoring (e.g., SSH orTFTP).
OS Type The type of operating system installed on the device (e.g., Cisco IOS or NX-OS).

Best practices

  • Regularly review the EOS/EOL Report to identify devices nearing end-of-support.

  • Plan hardware refreshes or upgrades ahead of time to avoid unpatched vulnerabilities.
